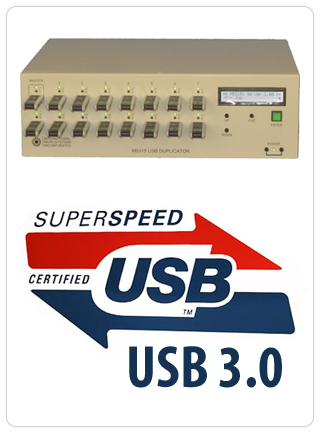

M5300 USB 2.0 & 3.0 Hard Drive Duplicator

USB 3.0 Duplicator M5300
Key Features

Configuration
15, 30, 45 slots
Typical Copy/Verify Speed
3.5 GB/min
Target Devices
All USB 2.0, USB 3.0 Mass Storage Devices
Operation Modes
Stand-Alone, software controlled, remote controlled
Job- Operations
Copy, Verify, Intelligent Verify, Smart Copy (Data only), File Copy
Data Source
Master, Image File, Files, Bit-Pattern
Smart Copy Support
FAT/FAT32/NTFS/HFS+
Operating System
SuSE Linux 10.2
Monitor, Key Board & Mouse
Included
Hard Disk Duplication
Supported
Warranty
1 Years Back to Base included

| More

The M5315 is a professional production Duplicator and tester of USB 2.0 & USB 3.0 products. It's based on super speed USB 3.0 technology. The M5315 can be run completely from its front panel using a 4 key input and the LCD status screen. Alternatively, a GUI using an 17” LCD display, Keyboard and Mouse can be used to define and execute simple or complex user defined scripts.

Multiple copy modes are supported such as Binary Image Copy, File Copy and Smart Copy of standard File Systems. Production statistics such as device serial numbers and error information are automatically stored for every job in an SQL data base. Verify operations include binary bit by bit, checksum, CRC and md5 checks. Network connectivity is via a 1 Gigabit Ethernet Port.

The M5315 series comes in 15, 30 or 45 socket version. The M5315 offers duplication speeds of 3.5GB/minute when copying to USB 3.0 devices.

The M5315 Key Features:

Speed

USB 3.0 Master Copy Speed - 3.5 GB/Min for up to 15 devices in parallel

USB 3.0 Master Verify Speed - 2.5 GB/Min for up to 15 devices in parallel

Smart Copy functions which copy only the used portions of a master USB Drive to the target drives.

Reliability

The M5315 uses "bit for bit" verification process as well as verify options for increased reliability and faster duplication

Easy

The easy to use interface or intuitive GUI makes job creation and control of the M5315 simple

Erase, format or copy at the touch of a button

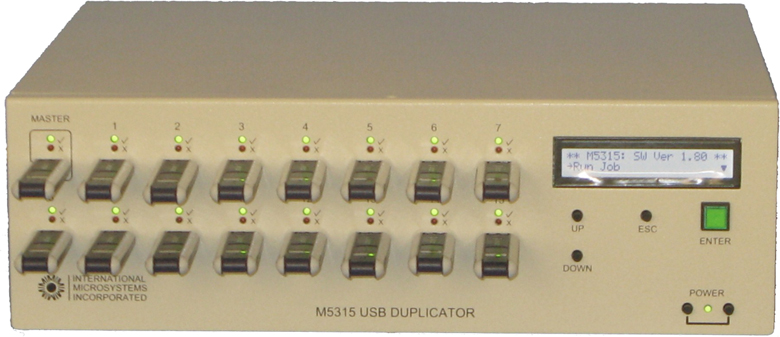

M5315 USB Duplicator
